Standards

To ensure consistency throughout the team's hardware, there are a few standards to follow when contributing to the shared libraries and working on your design projects.

Naming Convention

All Github repositories for PCBs should be named as follows: {System}-{BoardName}PCB. Some examples would be:

  • PS-ThermistorCollectorPCB
  • PS-PowerDistributionUnitPCB
  • VCAT-DashboardPCB

Symbols

All symbols must have the following fields populated to be merged into our shared libraries or used in an LHRs schematic.

Field Purpose
Reference Type of component
Value Component value (resistance, capacitance, etc.)
Footprint Footprint library & name (should be linked)
Datasheet Link to the manufacturer's datasheet
Description Summary of the component's functionality
P/N Manufacturer's part number

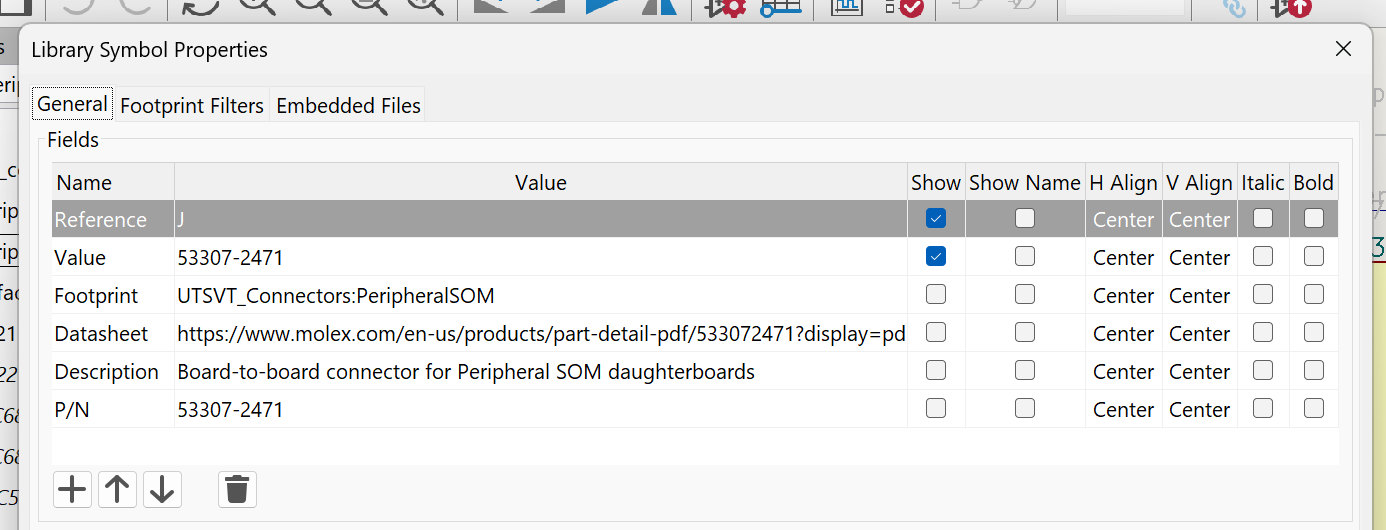

Example symbol fields would look something like this: Example symbol fields

Additionally, symbol pins should be grouped intuitively as shown and assigned the proper functionality (power, input, output, etc.). Please double check that the pins & pin numbers actually match the package shown on the datasheet. Example symbol pins

Footprints

Ensure the following for all footprints:

  • Footprints should match the datasheet. Please double-check
  • All pins should correspond to the schematic
  • Pin 1 should be clearly labeled in silkscreen
  • Footprints should have accurate 3D models attached as embedded files
  • Courtyards should be defined such that the soldered component won't interfere with any others

Embedding 3D Models

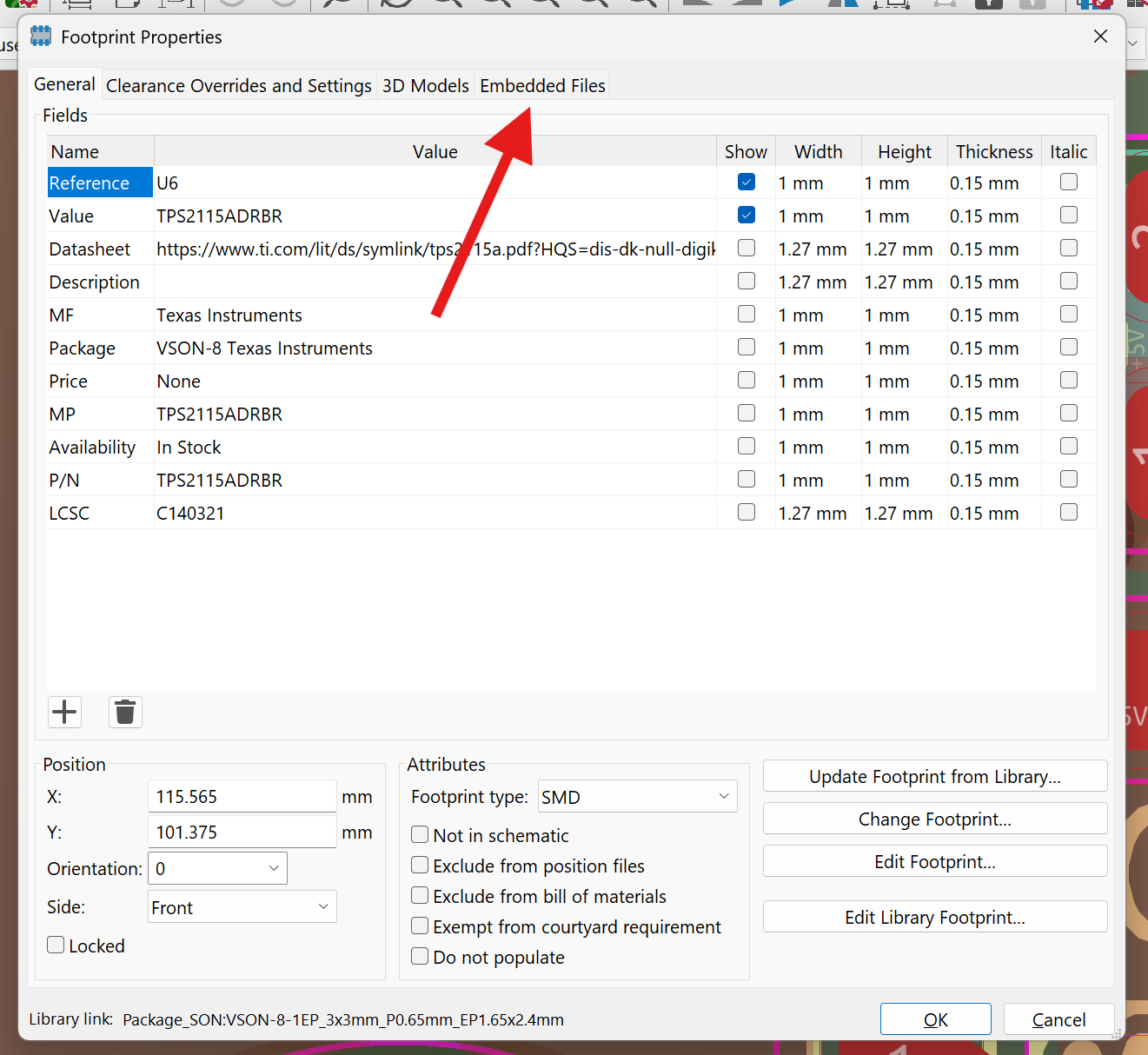

Open the footprint properties by hovering over a footprint and using the 'e' hotkey. Then navigate to the Embedded Files tab. Embedded Files Tab

Now add the embedded file by clicking the file icon. You can usually find the step file by searching the component part number on SnapMagic. Embedded Files Icon

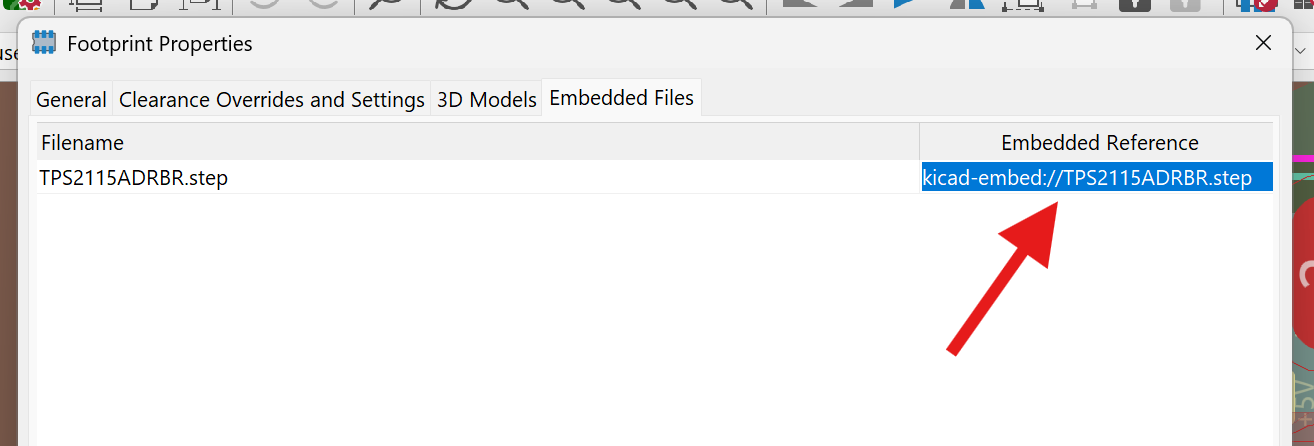

Copy the reference to the embedded file as shown (double-click and ctrl-c). Copying Embedded Reference

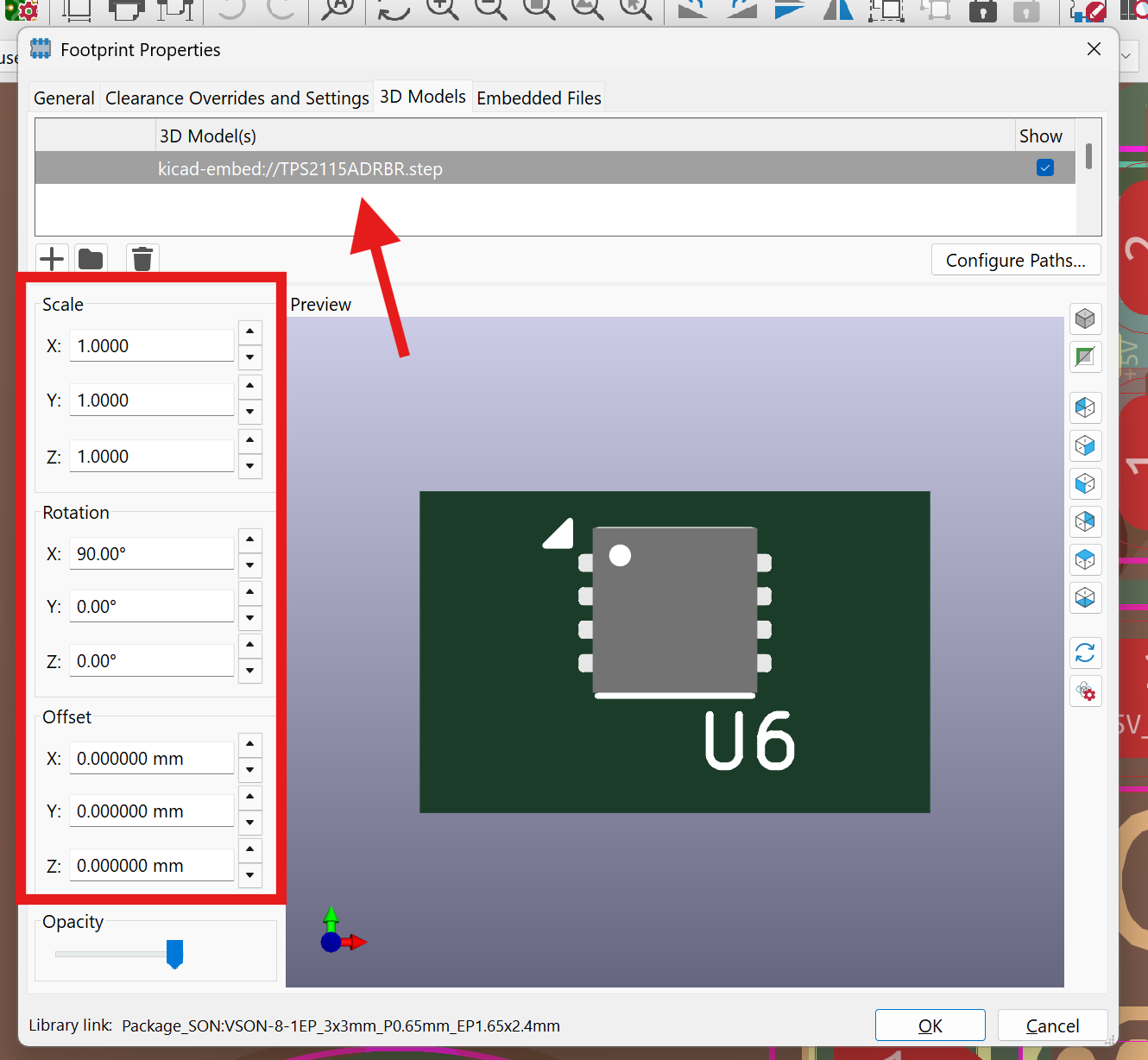

Finally, add the 3D Model by pasting the embedded reference in the 3D Models tab. Modify the Scale, Rotation, and Offset until the chip lines up properly with the pads. Ensure pin 1 of the model lines up with pin 1 of the footprint. If the model doesn't show up, close and reopen the footprint properties window to refresh. Add 3D Model
