CANbus Setup

About CAN

CAN FD vs bxCAN

There are two types of CAN, regular bxCAN and CAN FD. CAN FD is a variant of CAN that we can clock at a much higher frequency compared to bxCAN. The G4 series of STM32 only supports CAN FD and the F4 and L4 series only supports regular bxCAN. In order to maintain cross compatibility between all of our microcontrollers, we're mainly clocking our CAN at 250kbps. CAN FD can be configured to baud rates of 8 Mbps, while regular bxCAN can be configured up to 1 Mbps.

Configuring CAN in CubeMX

Please read the CubeMX Overview page first to understand how CubeMX works

System Clock Config

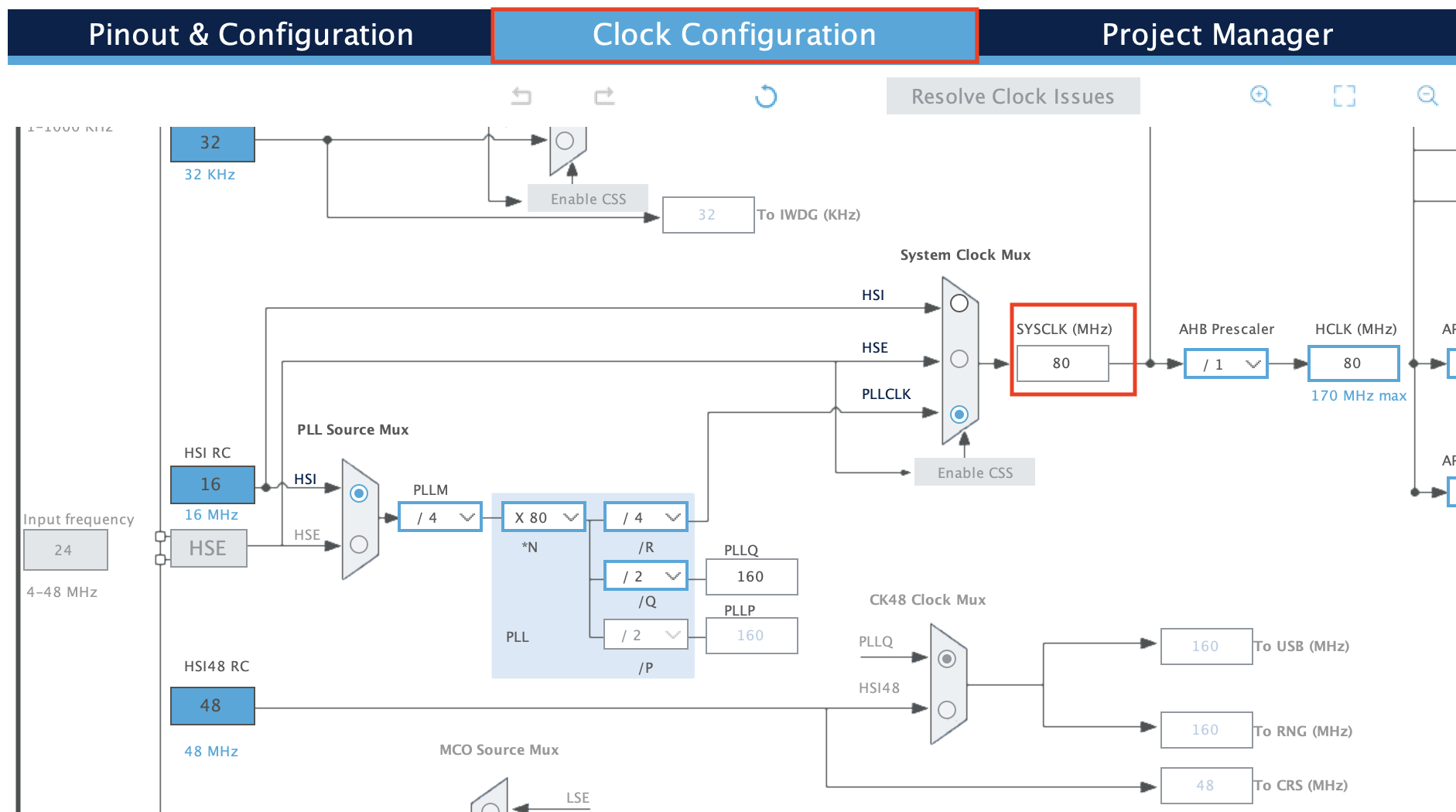

In CubeMX, go to the Clock Configuration tab and make sure that the SYSCLK is 80 MHz. The SYSCLK represents the system clock of the microcontroller, and most math around how timers and baud rates are configured is based on the system clock. System Clock Configuration.

Instructions on how to do that can be found here in section 3.3.

Baud rate configuration

For two devices to communicate on the same CAN bus, the baud rates of those CAN devices have to be the same.

We normally configure baud rate for 250kbps, but that may change depending on the specific bus, along with COTS devices (e.g. Elcon charger, steering angle sensor). For the 2026 LHRs vehicle, baud rates are defined in the Wire Harness Design sheet.

Configure the CAN_TX and CAN_RX pins in Pinout & Configuration

Once you've configured the pins go to Connectivity, and press the FDCAN or CAN peripheral.

  • Nominal Prescaler
  • Nominal Time Seg1
  • Nominal Time Seg2

To configure the baud rate you need to change the following properties in the Configuration -> Parameter Settings CAN baud rate configuration.

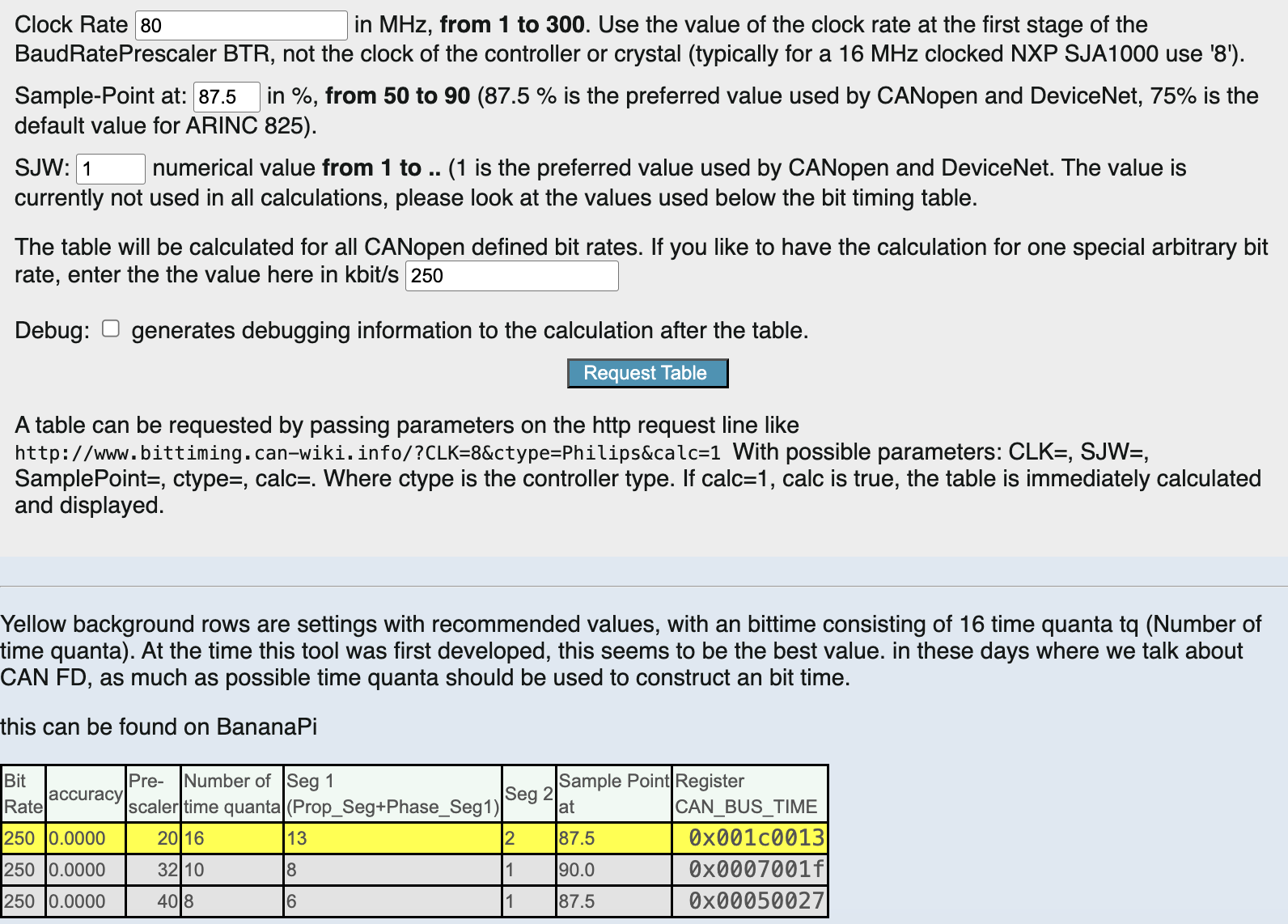

You can use a calculator to calculate these time segments values given the final baud rate. This calculator works. Just enter the Clock Rate in Mhz and the bit rate in kbps. CAN baud rate configuration. So I normally suggest using these values for 250kbps:

  • Nominal Prescalar: 20
  • Nominal Time Seg1: 13
  • Nominal Time Seg2: 2

You'll see the baud rate you've configured in the Nominal Baud Rate field in bit/s. If you're configuring for 250kbps you should see 250000 bit/s.

Configuring the CAN driver

1. CAN MSP Init

The CAN MSP Init function is generated by CubeMX, and it initializes the GPIO pins with the correct CAN alternate function. It is needed by to get CAN and/or CAN_FD to work. The MSP init functions are called after HAL_CAN_Init() is called.

For CAN_FD copy the below functions into your code:

  • HAL_FDCAN_MspDeInit
  • HAL_FDCAN_MspInit

For bxCAN copy the below functions into your code:

  • HAL_CAN_MspInit
  • HAL_FDCAN_MspInit

Priority Configuration

There is a max priority we can configure interrupts to be that use FreeRTOS functions. Make sure that your interrupts priority is >= this variable configLIBRARY_MAX_SYSCALL_INTERRUPT_PRIORITY.

Look at the call to the NVIC Set Priority function

    # sets the FDCAN 1 interrupts to be 3 + configLIBRARY_MAX_SYSCALL_INTERRUPT_PRIORITY
    HAL_NVIC_SetPriority(FDCAN1_IT0_IRQn, configLIBRARY_MAX_SYSCALL_INTERRUPT_PRIORITY + 3, 0);
    HAL_NVIC_EnableIRQ(FDCAN1_IT0_IRQn);
    HAL_NVIC_SetPriority(FDCAN1_IT1_IRQn, configLIBRARY_MAX_SYSCALL_INTERRUPT_PRIORITY + 3, 0);
    HAL_NVIC_EnableIRQ(FDCAN1_IT1_IRQn);

Do the same for all the CAN peripherals for every call to HAL_NVIC_EnableIRQ.

2. CAN Recieve Entries

In order to recieve CAN messages, you must declare the a can[x]_recv_entries.h header file.

The syntax is

CAN_RECV_ENTRY([ID], [number of entires in the queue], [if the queue is circular or not])

The queue is circular if when the queue is full, one of the pieces of data is overridden for the new piece of data.

// this makes a non-circular fifo of size 5 for the CAN ID 0x001.
CAN_RECV_ENTRY(0x001, 5, false)

The file name must be canX_recv_entries.h where the X corresponds to the can peripheral.

See the test/Inc folder for an example can recieve entries header. You MUST delcare a can recieve header for every CAN peripheral.

3. CAN Filter

CAN filters determine which CAN frames the hardware accepts. Frames that do not pass the filter are discarded by the peripheral before they reach the software driver.

For FDCAN, see the following tutorial on how to configure FDCAN filters.

For bxCAN, see the "Configuring CAN Filters in STM32" section in this tutorial.

4. CAN Init

For bxCAN, call:

can_status_t can_init(CAN_HandleTypeDef* handle, CAN_FilterTypeDef* filter)

can_status_t can_start(CAN_HandleTypeDef* handle);

For FDCAN, call:

can_status_t can_fd_init(FDCAN_HandleTypeDef* handle, FDCAN_FilterTypeDef* filter)

and

can_status_t can_fd_start(FDCAN_HandleTypeDef* handle);

Make sure the filter config and handle are both configured before calling the init function. See the can_fd test in the test/tests/ folder. The tests are both configured for INTERNAL_LOOPBACK mode which connects TX and RX each other. You should set it to NORMAL during production code.

Sending CAN messages

Please read the following sections on DBC files and how to use them before moving on.

Both the bxCAN and CAN_FD have the same arguments to send CAN data (differences are only in name).

The FDCAN_TxHeaderTypeDef and CAN_TxHeaderTypeDef defined in the STM32 HAL, are different mostly in name, and they contain important information like length of the CAN message, CAN ID, and other paramters. See the relevant test files on examples on what to set those parameters as.

can_status_t can_fd_send(FDCAN_HandleTypeDef* handle, FDCAN_TxHeaderTypeDef* header, uint8_t data[], TickType_t delay_ticks)


can_status_t can_send(CAN_HandleTypeDef* handle, const CAN_TxHeaderTypeDef* header, const uint8_t data[], TickType_t delay_ticks)

Recieving CAN messages

Please read the following sections on DBC files and how to use them before moving on.

Both the bxCAN and CAN_FD have the same arguments to recieve CAN data (differences are only in name).

In order to recieve CAN messages, you must have that ID in the `can[X]_recv_entries.h header file. The CAN ID must also be accepted by the CAN hardware filter, or the CAN recieve interrupt won't trigger.

can_status_t can_fd_recv(FDCAN_HandleTypeDef* handle, uint16_t id, FDCAN_RxHeaderTypeDef* header, uint8_t data[], TickType_t delay_ticks)

can_status_t can_recv(CAN_HandleTypeDef* handle, uint16_t id, CAN_RxHeaderTypeDef* header, uint8_t data[], TickType_t delay_ticks)

Blocking on multiple CAN messages

If you want a thread to block on multiple CAN messages, and wake up the thread if any of those CAN messages are sent, you can use a FreeRTOS queue set. Both the bxCAN and FDCAN have built in support to pass a list of IDs + preallocated queue set.

Creating the Queue Set

typedef struct
{
    const uint32_t *ids; // list of IDs in the queue set
    uint32_t id_count; // number of IDs in the queue set
    QueueSetHandle_t queueSet; // the queue set
} can_id_set_t;

This can_id_set_t struct contains all necessary metadata to block on mutliple CAN IDs. This struct will be created by the user, and must be statically allocated. It's best practice to make the max size of the queueSet, the summation of all the max lengths of the queues in the set.

Register the Queue Set

Once the queue set is created, pass in the set to the CAN driver to add the CAN driver's internal per-ID queue to the queue set.

bxCAN

can_status_t can_register_id_set(CAN_HandleTypeDef* handle, can_id_set_t* set)

FDCAN

can_status_t can_fd_register_id_set(FDCAN_HandleTypeDef* handle, can_id_set_t* set)

Recieve CAN data from the Queue Set

Once the queue set has registered IDs, pass in the can handle, the list of IDs, a pointer to the ID, and the blocking time. If the function returns successfully, there is a CAN ID that has a new message, and that is passed by reference through the id variable.

bxCAN

can_status_t can_recv_set(CAN_HandleTypeDef* handle, can_id_set_t* set, uint16_t *id, TickType_t delay_ticks)

FDCAN

can_status_t can_fd_recv_set(FDCAN_HandleTypeDef* handle, can_id_set_t* set, uint16_t *id, TickType_t delay_ticks)

Usage example:

    if (can_fd_recv_set(hfdcan1, &canQueueSetStruct, &id, portMAX_DELAY) == CAN_OK)
    {
        can_fd_recv(hfdcan1, id, &fdcan1_rx_header, fdcan1_rx_data, 0);

        printf("Recieved Can message from id: %d\n\r", id);

        HAL_GPIO_TogglePin(LED_PORT, LED_PIN);
    }

Tests that use queue sets

CAN hooks

Two hook functions are provided to the user for when a CAN message is sent and when a CAN message is recieved. These hooks are useful for debugging and mirroring CAN messages over USB. By default, they are defined as weak in the driver file, which allows the user to redeclare it in their code, and have their implementation get called.

Transmit Hook

The CAN transmit hook is not called from an interrupt, so you do not need to use the ISR-safe FreeRTOS functions, but blocking prevents other CAN messages from being sent, and using global variables in the hook may cause race conditions.

FDCAN TX Hook

can_fd_tx_callback_hook(FDCAN_HandleTypeDef* hfdcan, const can_tx_payload_t* payload)

bxCAN TX Hook

void can_tx_callback_hook(CAN_HandleTypeDef* hcan, const can_tx_payload_t* payload);

Recieve Hook

The CAN recieve hook is called in the context of the can recieve interrupt, so special care must be taken to not block and only use ISR-safe FreeRTOS functions like xQueueSendFromISR.

FDCAN RX Hook

void can_fd_rx_callback_hook(FDCAN_HandleTypeDef *hfdcan, uint32_t RxFifo0ITs, can_rx_payload_t recv_payload )

bxCAN RX Hook

void can_rx_callback_hook(CAN_HandleTypeDef *hcan, uint32_t RxFifo0ITs, can_rx_payload_t recv_payload )

Usage example:

Codebases that use CAN
